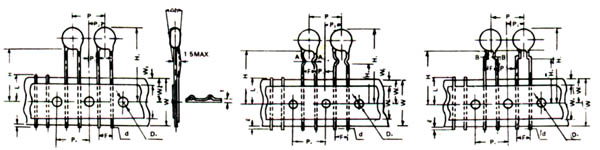

    CLASS1,2&3 | CLASS1,2&3

    item
    code
    dimensions(mm)


    Taping Pitch
    P
    12.7+1.0
    Guide Pitch
    P0
    12.7+0.2
    Lead Spacing
    F(F1)

    5.0
    +0.6
    		 (3.0+0.5)
    -0.2
    Feed Hole Position
    P2
    6.35+1.3
    Feed hole position
    P1
    3.85+0.7,4.85+0.7
    diameter of Body
    D
    differ in each product
    Width of vase Tape
    W
    18.0+0.5
    Half of base Tape Width
    W1
    9.0 +0
    -0.5
    Lead Length (Kink)
    H0
    16.0+0.5
    Lead Length (Straight)

    H
    16.5 +0.5
    20.0 +1.5
    -1.0
    Lead Length (kink)
    H2
    4.8max.
    5.0max
    6.0max
    8.0+0.5
    Protrusion Length
    W
    0.5~-1.0
    Diameter of feed Hole
    D0
    4.0+0.1
    Diameter of lead
    d
    0.6 +0.06
    -0.05
    Tqtal Thickness of Tape
    t
    0.7+0.2
    Thickness of Capacitor Body
    T
    Differ in each product
    Deviation Across Tape
    △h
    0+1.0
    Cutting Position of Failure
    L

    11.0
    +0
    -1.0
    Width of Adhesive Tape
    W0
    11.5min
    Margin Between Both Tape
    W2
    1.5+1.5
    Parts Length
    e
    *1.0max.
    up to the center of kink
